- Quantity: 1
- Serial Number: 14-11702
- Price: Please Call or Email For Pricing.
- Description:

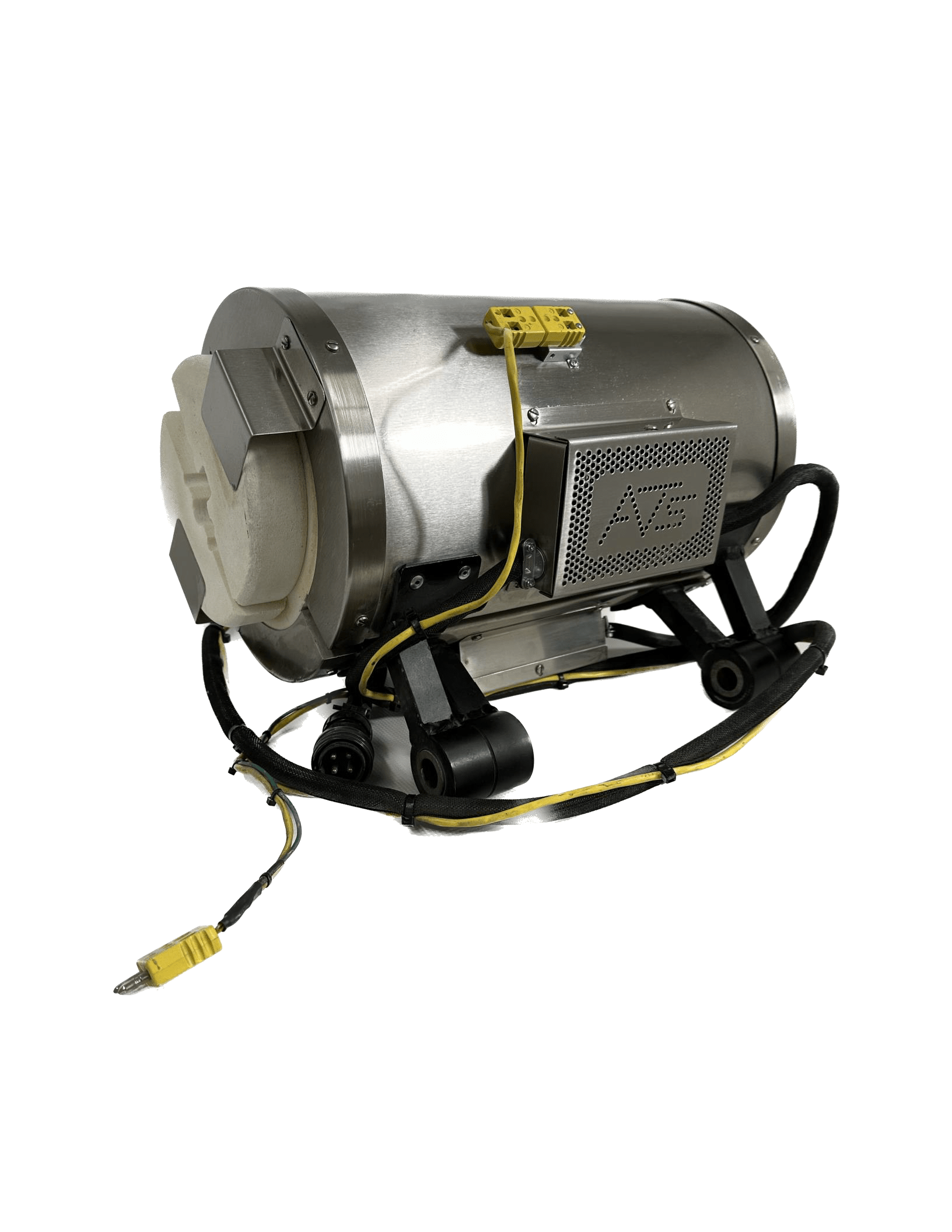

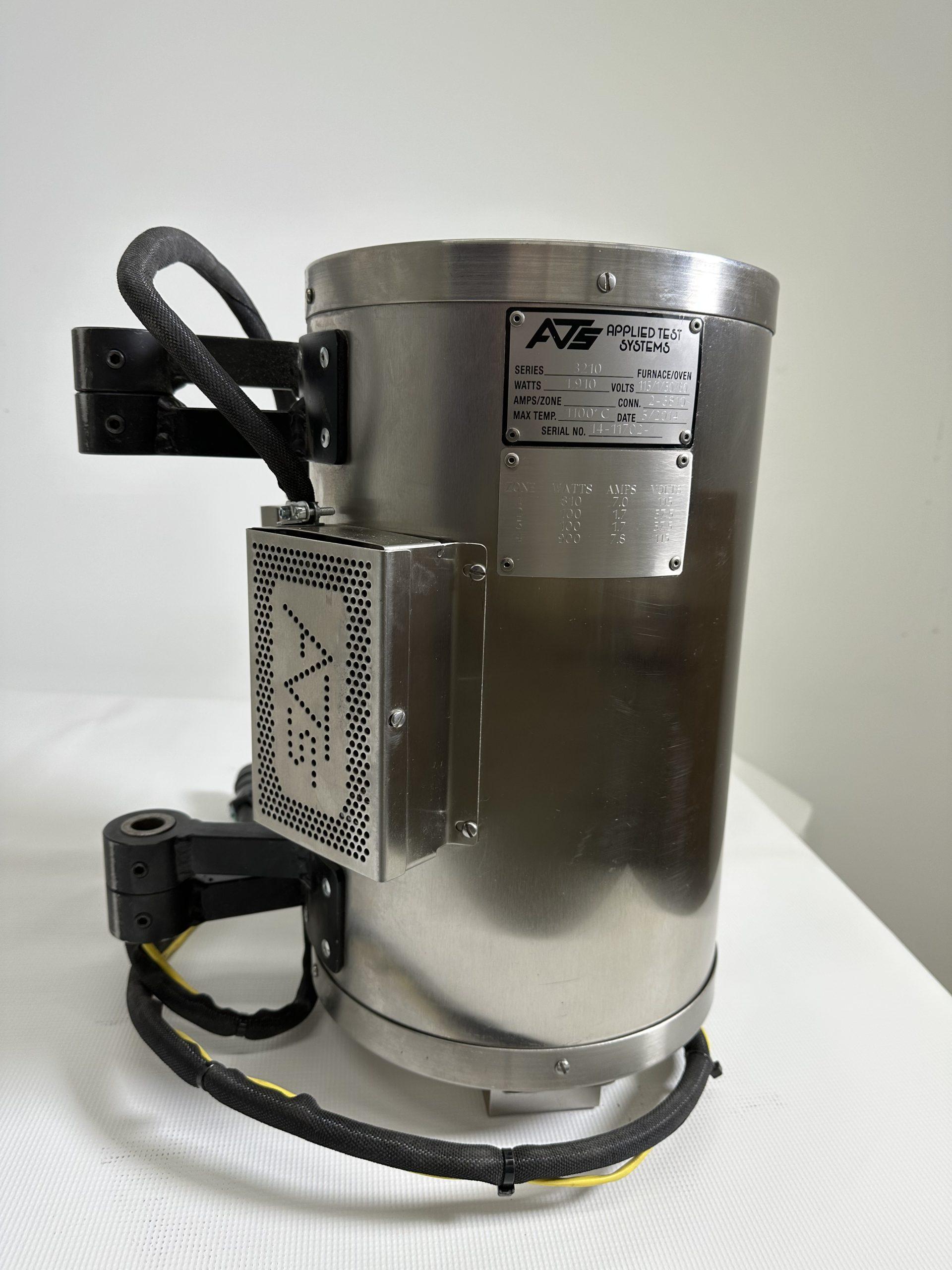

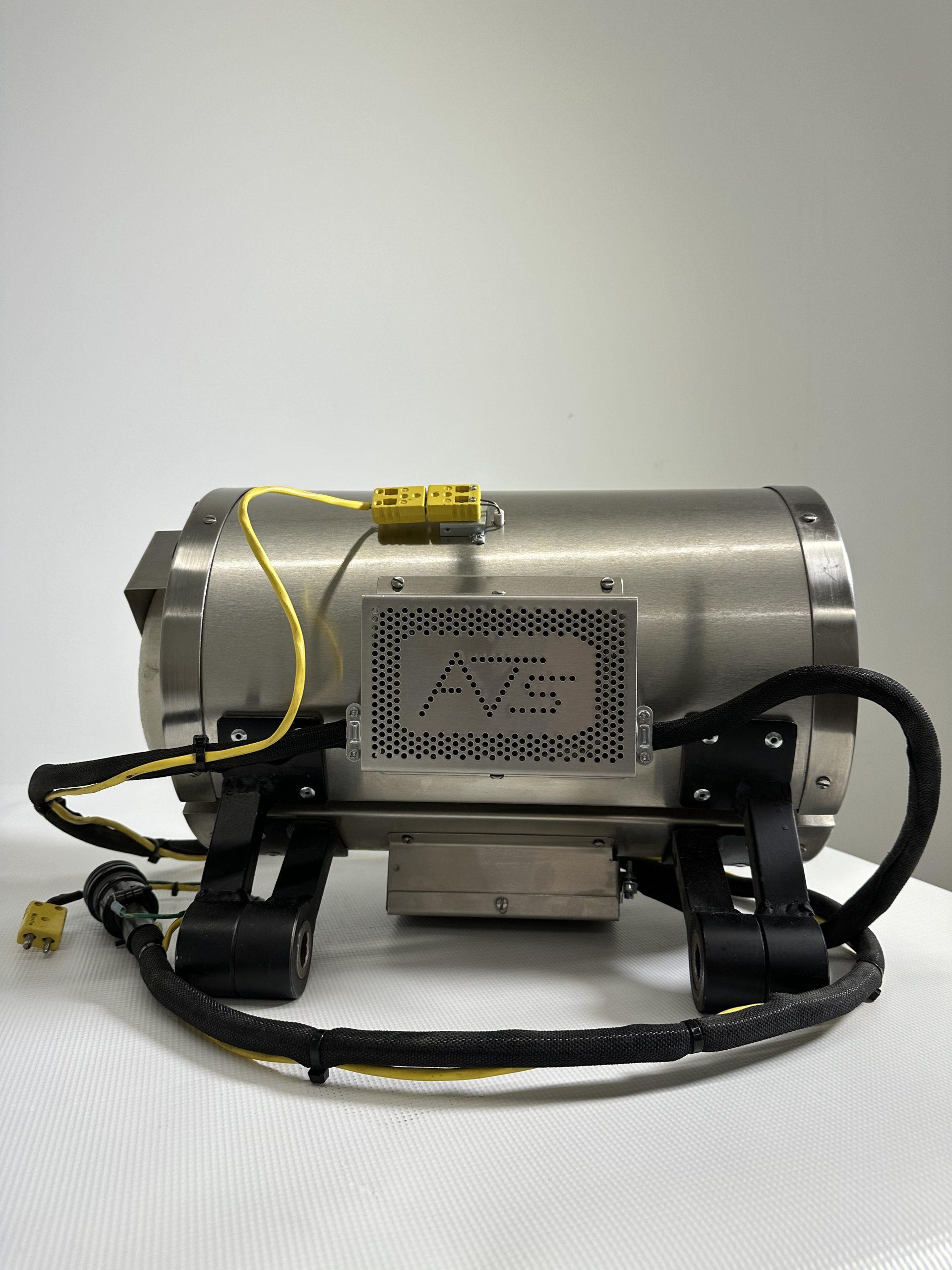

- Dimensions: 3 in I.D. x 10 in O.D. x 16 in long.

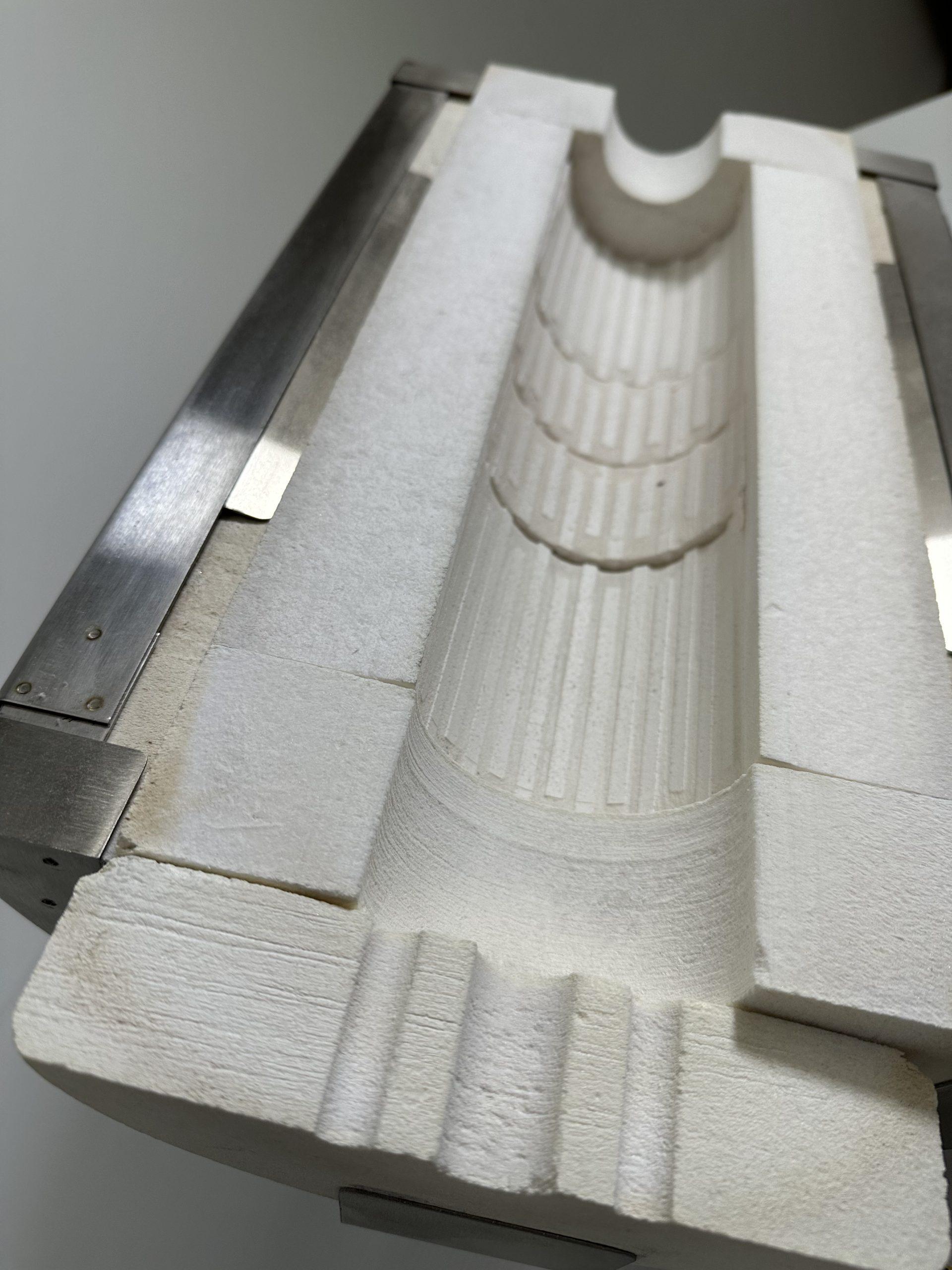

- Elements: Kanthal A1 for 1205 deg C. (2200 deg F) service with embedded winding.
- Maximum furnace temperature rating: 1100 deg C.
- Zones: 4-Zones construction, 12 in. heated length.
- 1st zone: 4 in. long, 810 watts @ 115 VAC
- 2nd zone: 2 in. long, 100 watts @ 57.5 VAC
- 3rd zone: 2 in. long, 100 watts @ 57.5 VAC
- 4th zone: 4 in. long, 900 watts @ 115 VAC

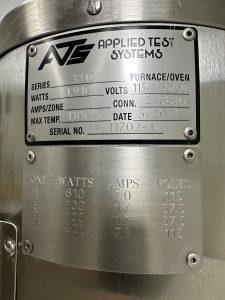

- Power: 1910 watts, 16.6 amps @ 115 VAC, 1 Ph, 50/60 Hz.
- End bore:
- Upper: 2 in. dia.
- Lower: 3 in. dia.
- End caps:
- Upper: 1 1/2 in. thick x 3/4 in. I.D. x 6 1/2 in. O.D.
- Lower: 1 1/2 in. thick with port to fit 3/4 in. pull rod and Series 4124 or 4124A Extensometer x 6 1/2 in. O.D.
-
- (1) Thermocouple Port: 1/4 in. diameter, midlength in center zone, back half.
- (1) Thermocouple, Type K, with ceramic insulator.
- (1) Thermocouple connector with mounting bracket.
-
- Split Furnace Mounting Bracket.
- Furnace Power Cable (6 ft.)
-
- Small container of embedding cement
![](https://www.atspa.com/wp-content/uploads/2022/10/14-11702-3210-Furnace-5-SS-232x300.png)
![](https://www.atspa.com/wp-content/uploads/2022/10/029E9008-0C5A-4CF1-90BD-2A58E2F12580-225x300.jpeg)
![](https://www.atspa.com/wp-content/uploads/2022/10/A72A0F82-AC03-4F26-BE9D-454766C5863F-225x300.jpeg)
![](https://www.atspa.com/wp-content/uploads/2022/10/D9A18105-524C-41FB-91C2-F0D5CE7335FE-225x300.jpeg)
![](https://www.atspa.com/wp-content/uploads/2022/10/9E238EB0-4C15-4972-976F-CF89907BD9D5-225x300.jpeg)
![](https://www.atspa.com/wp-content/uploads/2022/10/62185477-BA94-4143-A06A-78C34B7B1EB1-225x300.jpeg)
![](https://www.atspa.com/wp-content/uploads/2022/10/69A305F6-C9F0-4059-A010-C387E9082244-225x300.jpeg)
Please Contact Sales or call us at +1.724.283.1212 if you have any questions regarding this furnace! We can provide additional photos and information upon request!
