- Quantity: 1
- Serial Number: 17-16469
- Price: Please Call or Email For Pricing.
- Description:
- Dimensions: 3 in I.D. x 10 in O.D. x 16 in long.

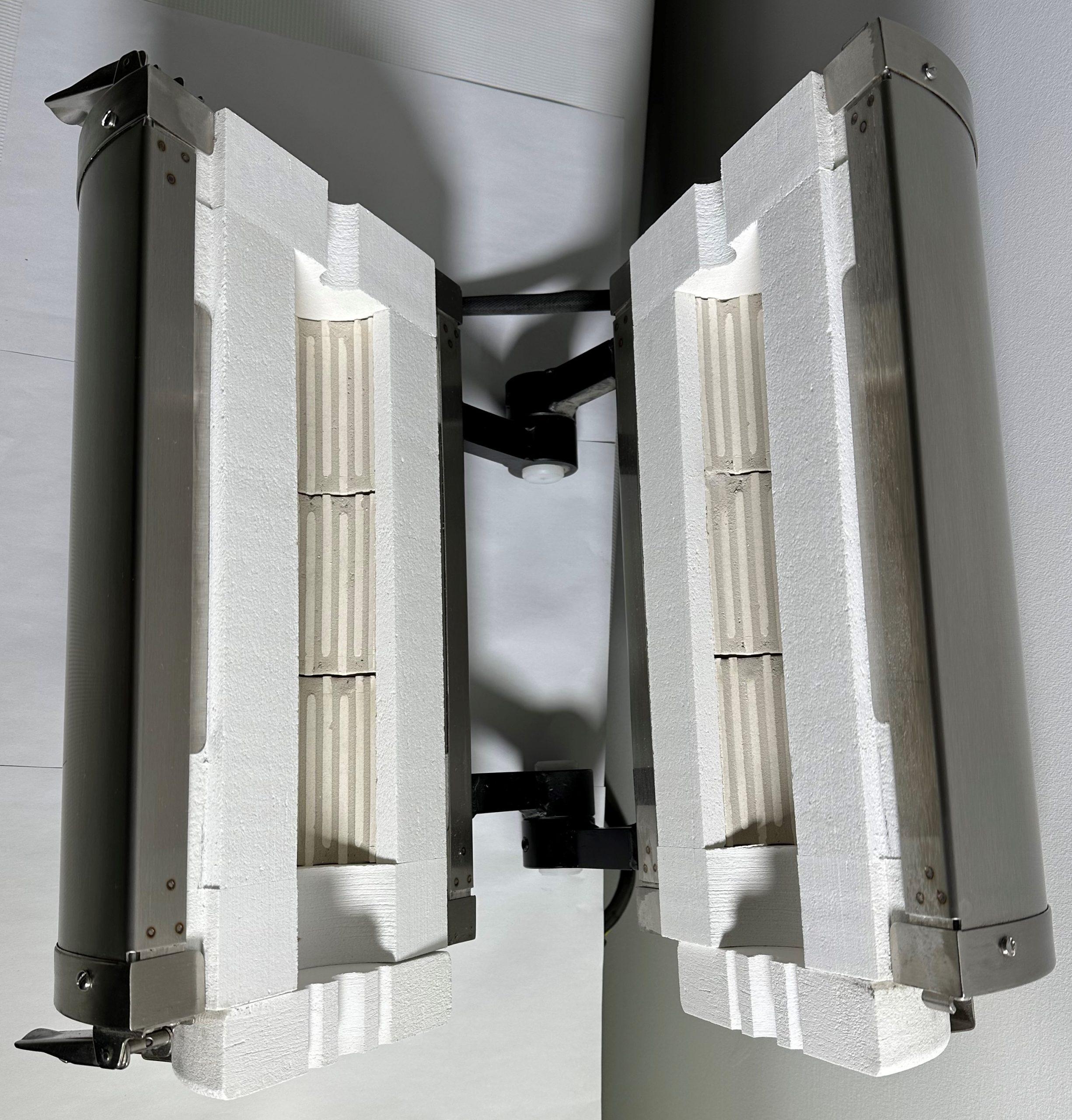

- Elements: Kanthal A1 for 1205 deg C. (2200 deg F) service with embedded winding.
- Maximum furnace temperature rating: 1100 deg C.
- Zones: 3-Zone construction, each zone 4 in long, 12 in heated length.
- Power: 880 watts/7.6 amps per zone, total power 2640 watts @ 115 VAC, 1 Ph, 50/60 Hz.
- End bore:
- Upper: 1-inch diameter
- Lower: 3-inch diameter

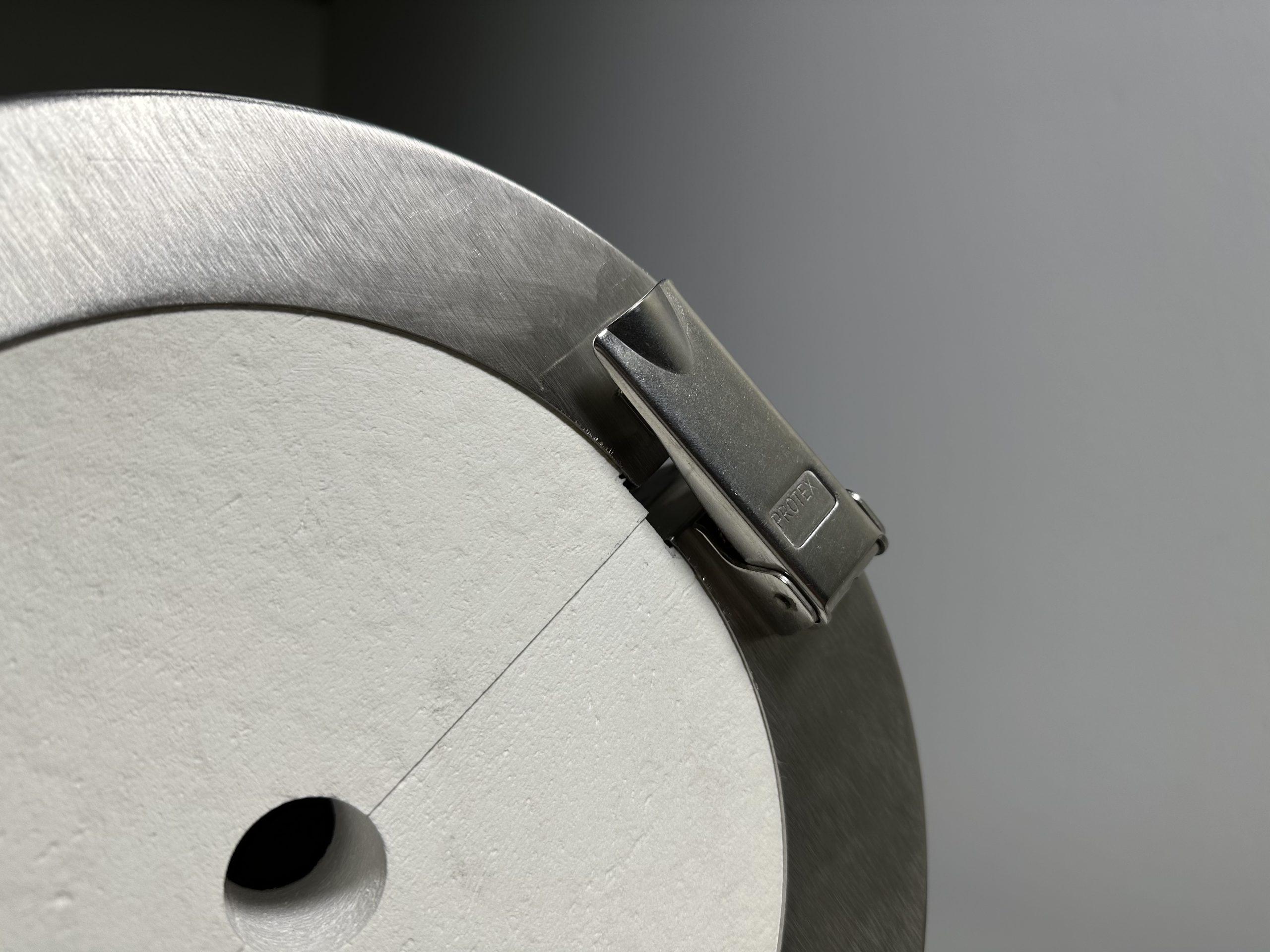

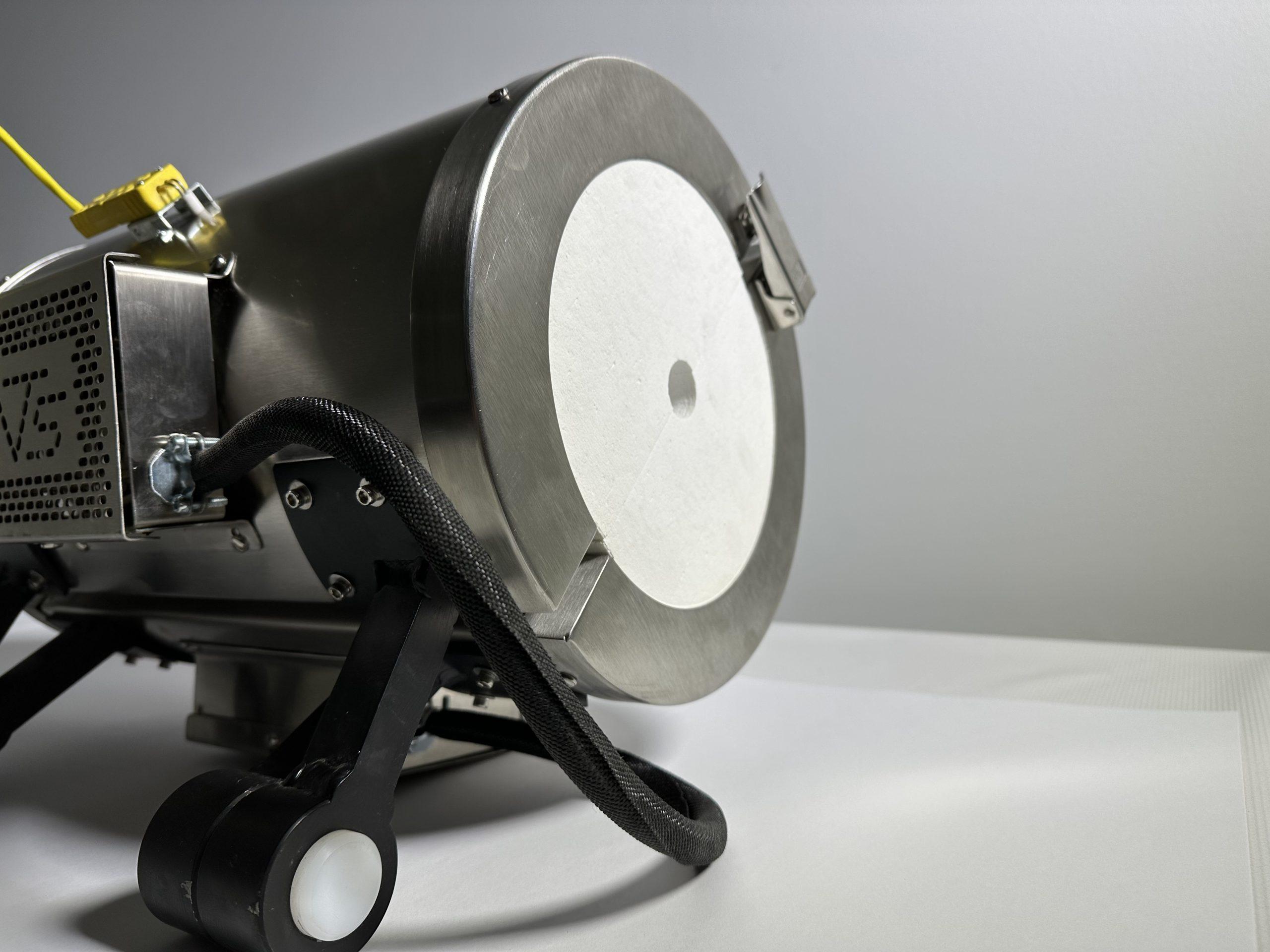

- End caps:
- Upper: 1 1/2 in. thick x 3/4 in. I.D.
- Lower: 1 1/2 in. thick with port to fit 3/4 in. pull rod and Series 4124 or 4124A Extensometer.
-
- (1) Thermocouple Port: 1/4 in. diameter, midlength in center zone, back half.
- (1) Thermocouple. Type K, with ceramic insulator.

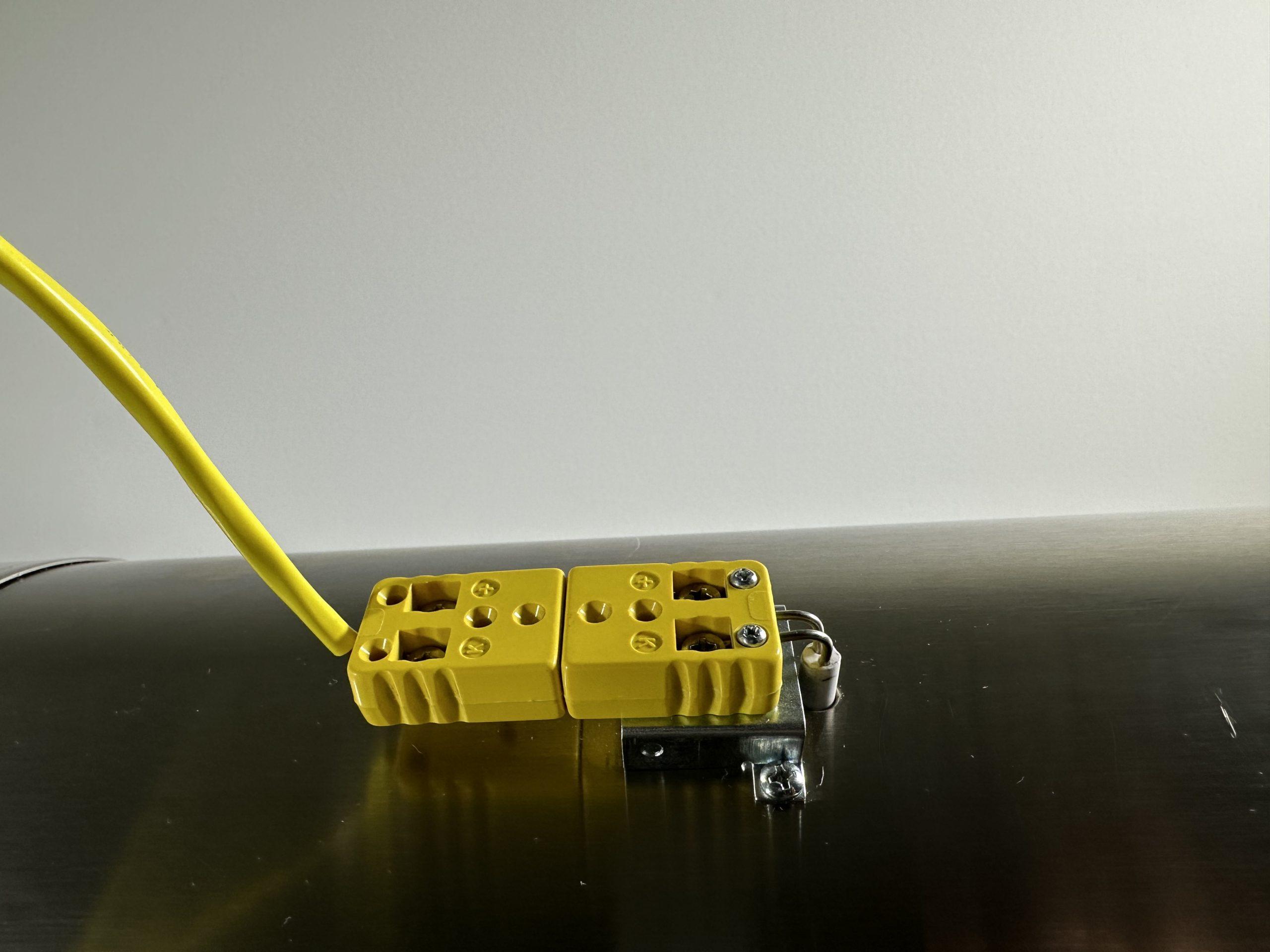

- (1) Thermocouple connector with mounting bracket.
-

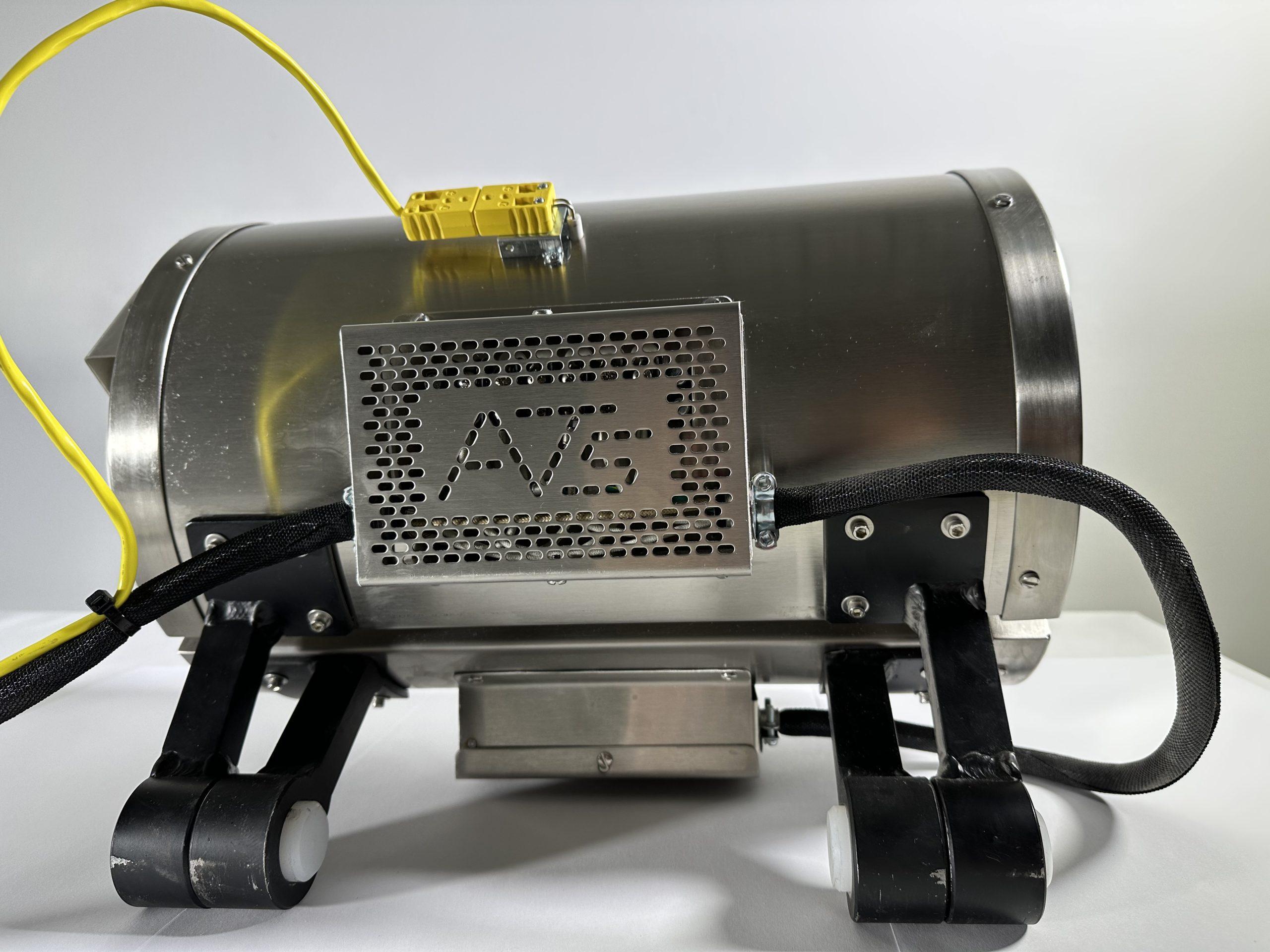

- Split Furnace Mounting Bracket.
- Furnace Power Cable (6 ft.)
-
- Small container of embedding cement.
-
- For use with WinCCS System.
Please Contact Sales or call us at +1.724.283.1212 if you have any questions regarding this furnace! We can provide additional photos and information upon request!
