- Quantity: 3

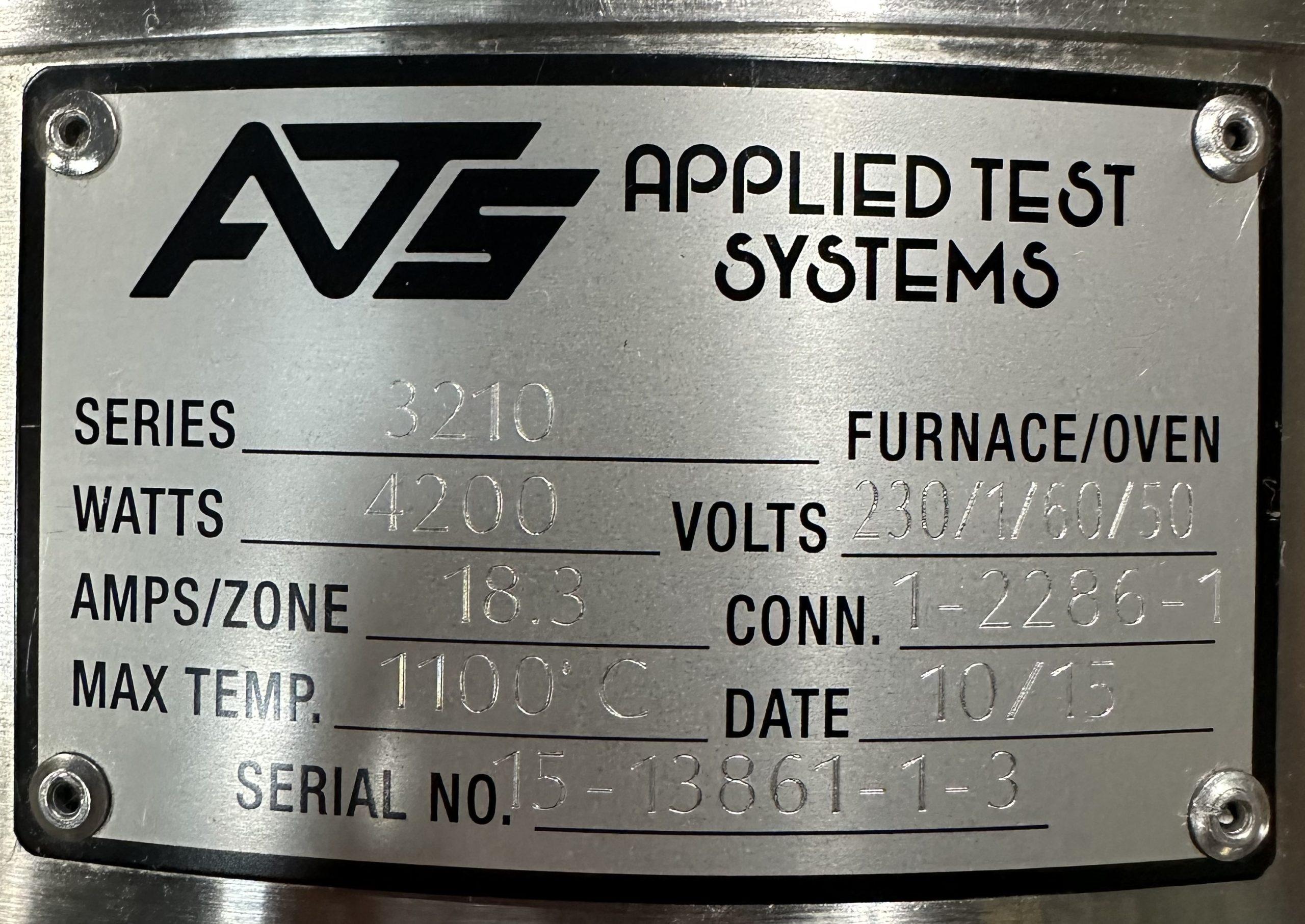

- Serial Number: 15-13861
- Price: Please Call or Email For Pricing.
- Description:

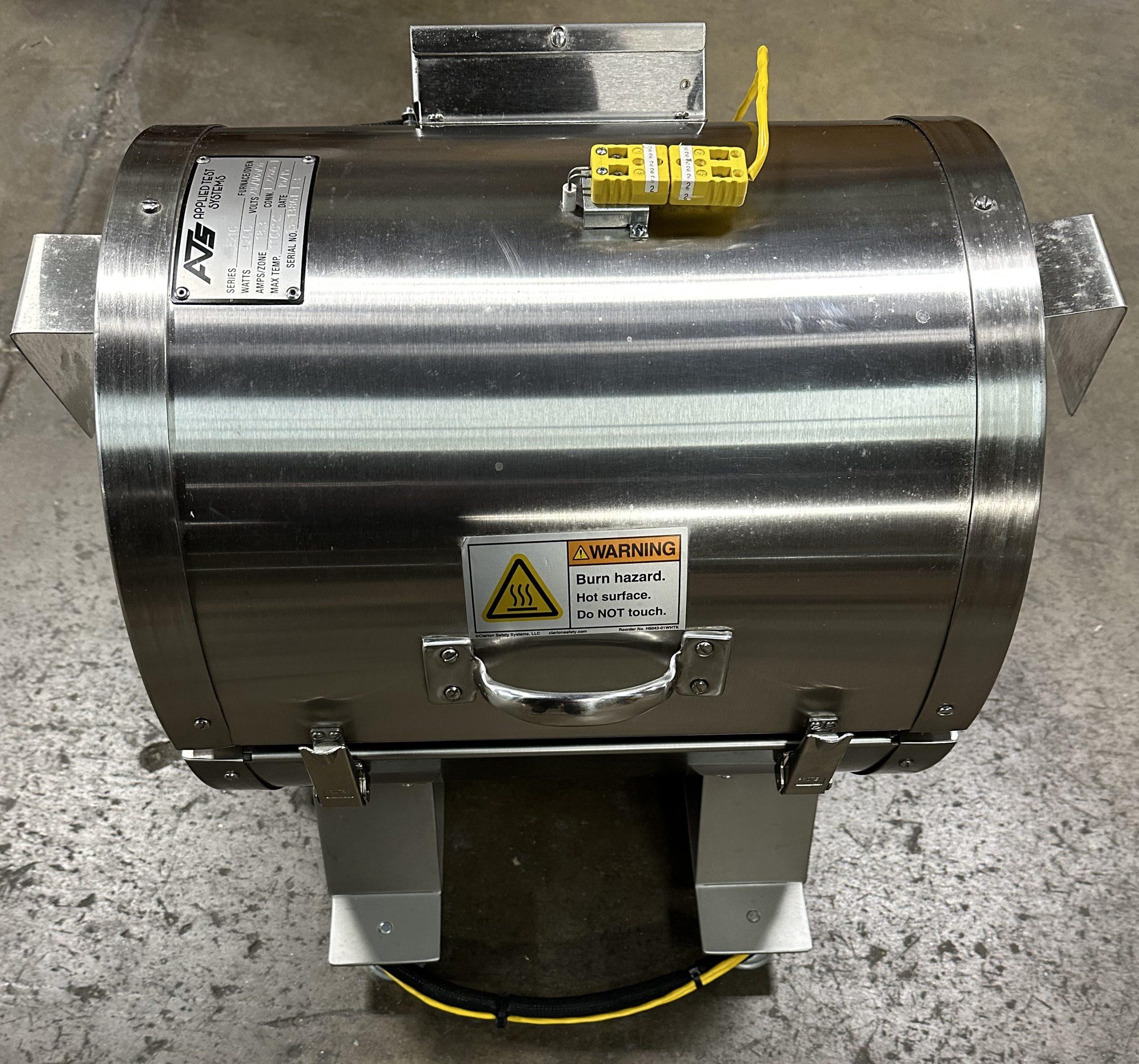

- Dimensions: 6 in I.D. x 14 in. O.D. x 16 in. long.

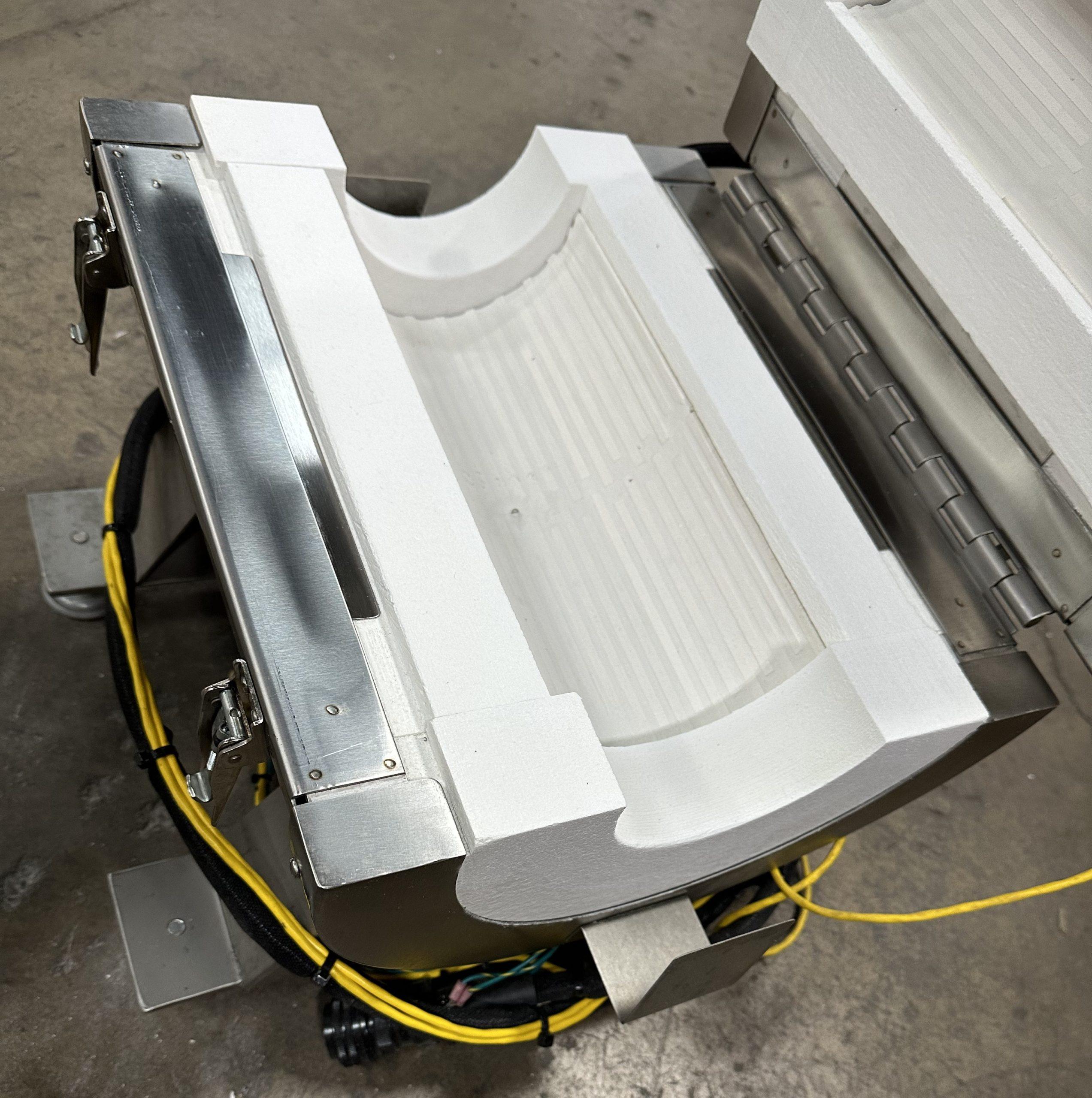

- Elements: Kanthal, embedded windings.
- Furnace Temperature Rating: 1100 deg. C.
- Single Zone construction, 12. heated length
- Power: 4200 watts / 18.3 amps @ 230 VAC, 1Ph, 60 Hz.
- Connection: With opposing half sections connected in parallel.

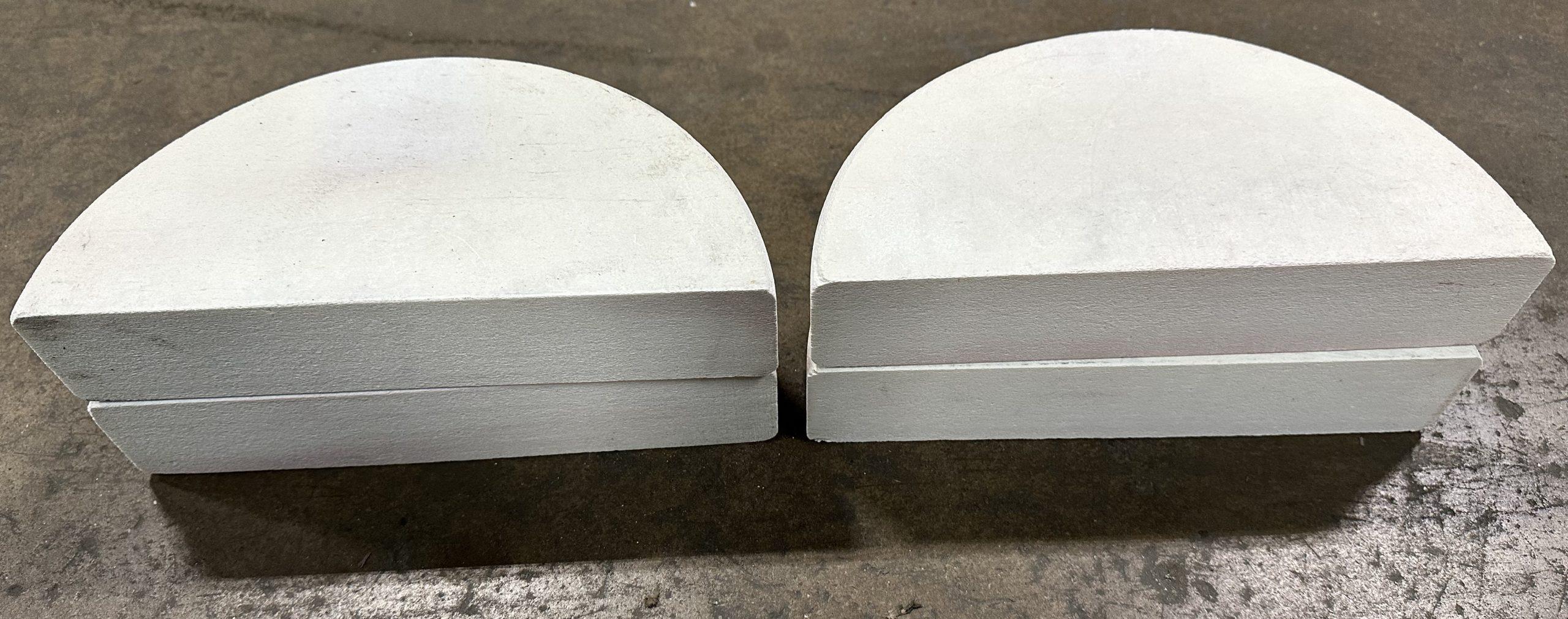

- End Disk: 2 in. Thick, bore 5 in. both sides.

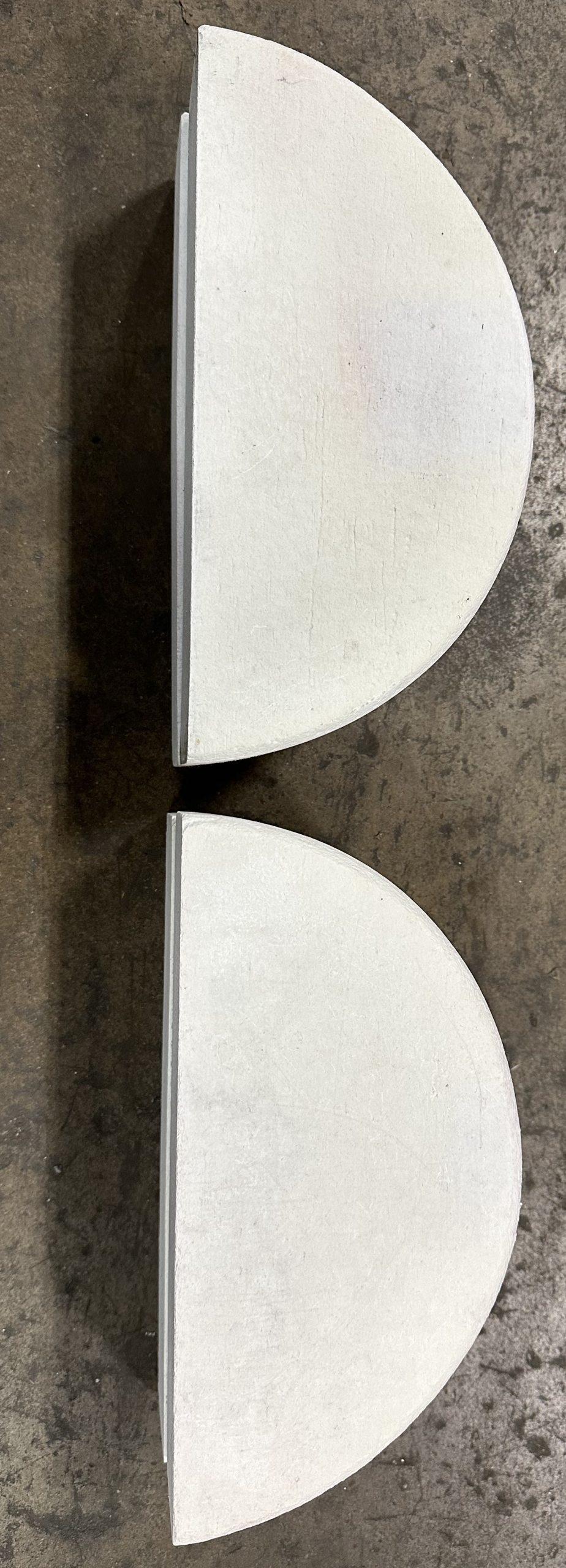

- End Caps: 2 in. thick, blank, customer to bore.

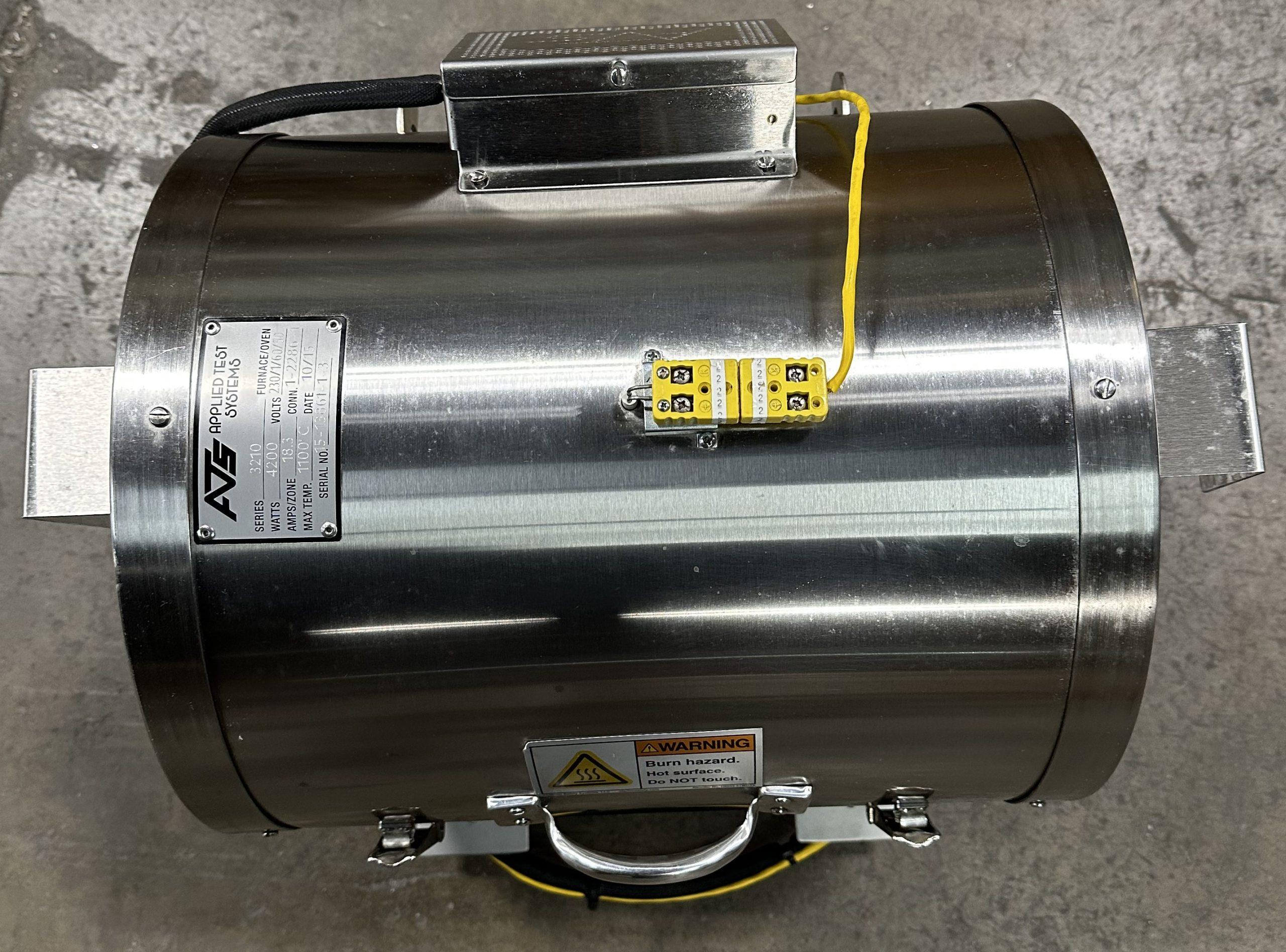

- (2) Thermocouple Ports: 1/4 in. diameter, located mid-length on opposing halves of the furnace.
- (2) Thermocouple, Type K, with ceramic insulator and connector with mounting bracket.
- Support brackets with levelers for horizontal use or remove levelers for vertical use.
- Furnace Control System
- Watlow PM digital programmable controller including 4 program files with a total of 40 segments with an integrated over-temperature control.
- Includes RS-485 / modbus communications. (Customer would be responsible for running the cable from the back of the conrol system to their computer. ATS will supply a DB-25 connector.)
- Solid state relay power control, for use with resistive loads.
- (1) Power shutdown relay, manual reset.

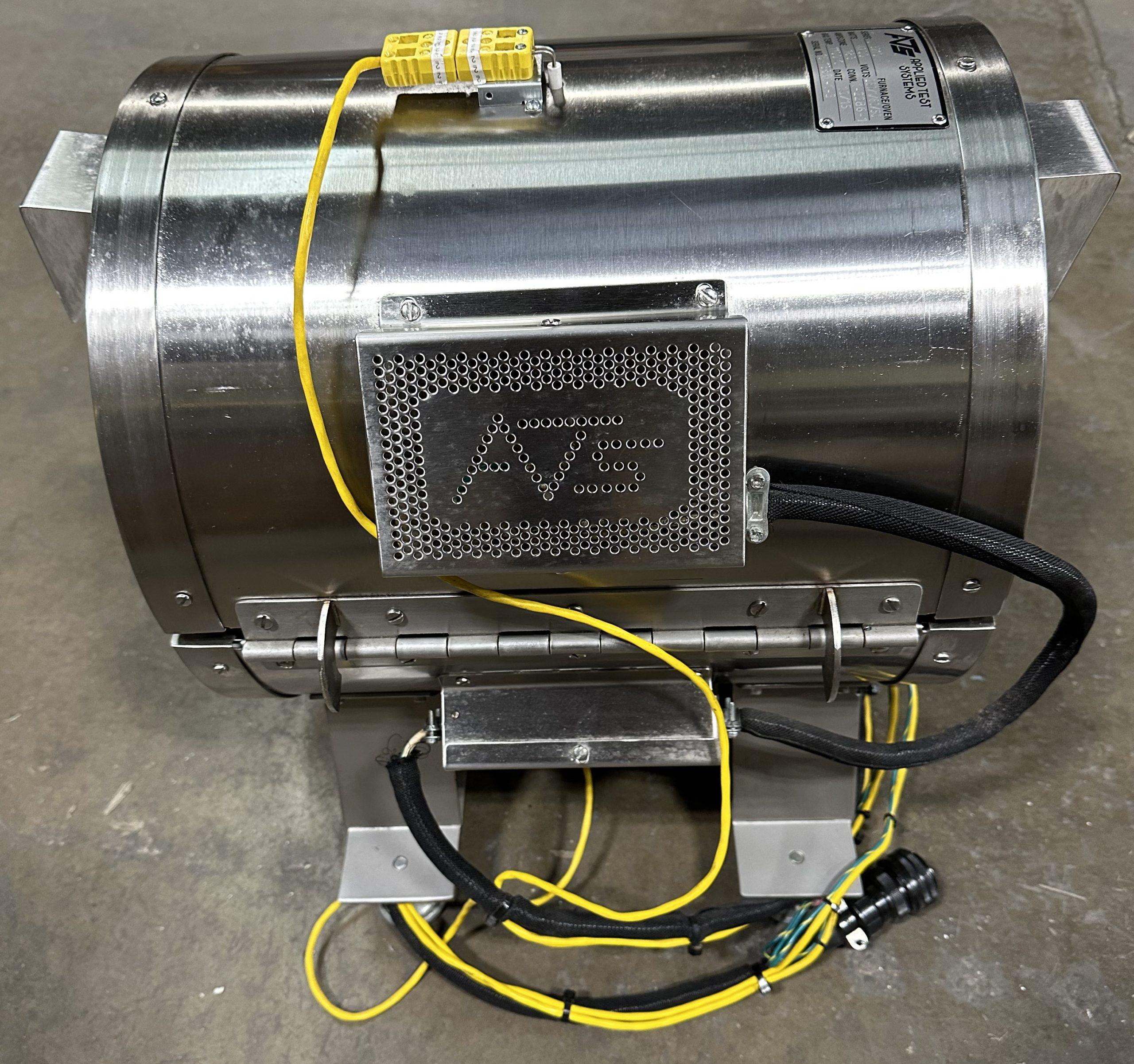

- (6 ft) Cable assembly with power and thermocouple leads.
- Circuit breaker, and power indicating lamp.
- Installed in bench-top cabinet: 17 in. W x 13 in. D x 5.25 in. H
- Power Cord is not included with 230 VAC systems.
