Applied Test Systems offers a full line of quality pipe/pressure testing systems, fixtures and accessories. We continually work to provide the newest improvements and innovations in these systems. While our main focus has been to provide testing equipment to meet the testing needs of ASTM D1598 and D1599 we can design and manufacture similar equipment to meet many similar applications.Series 1835 Burst Test System

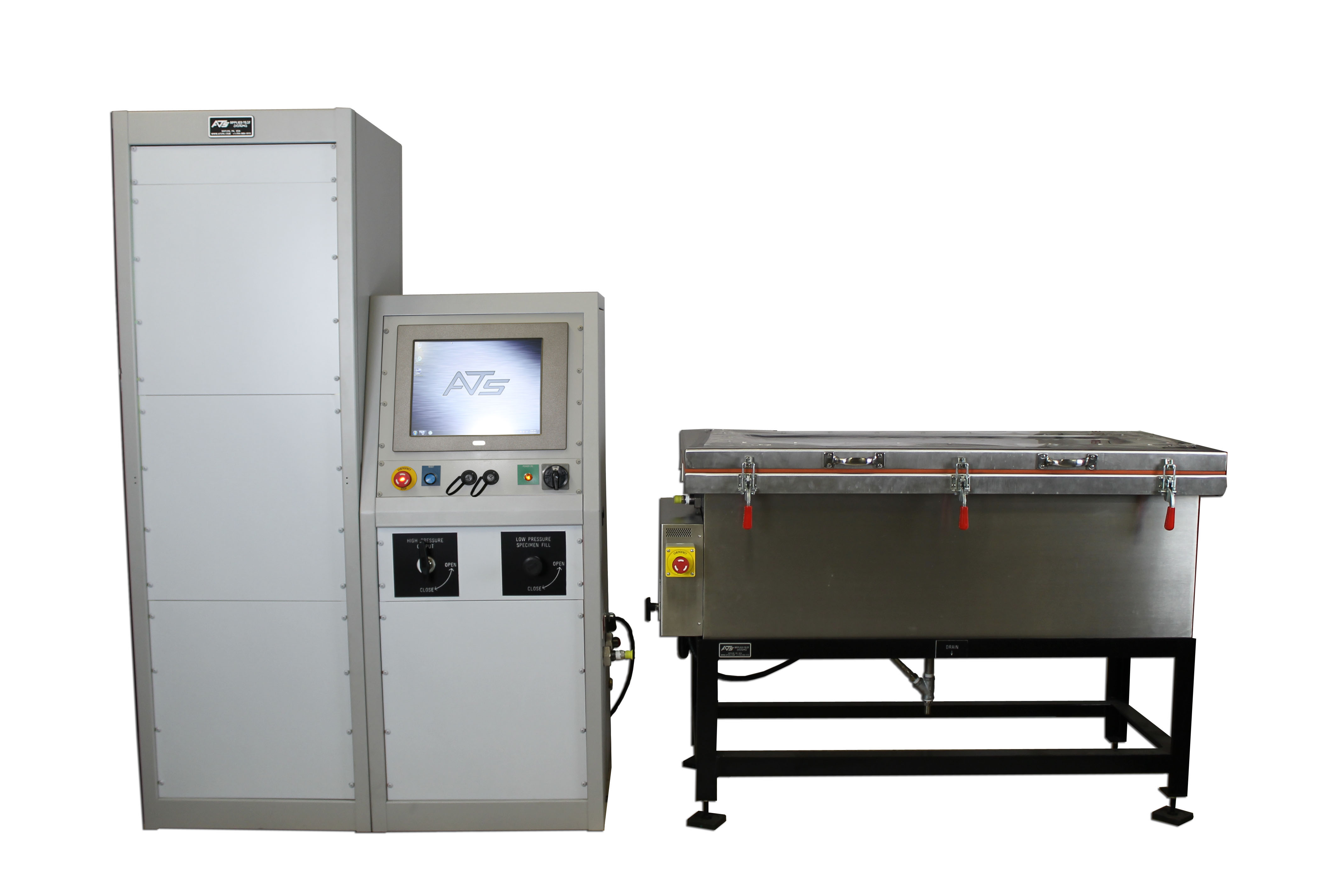

Series 1835 Burst Test System
- Designed to provide an automatic, uniform pressure ramp to failure per ASTM D-1599
- Various size systems are available to test most sizes and materials of plastic pipes.
- Pressure system with variable speed motor driven regulator as pressurizing rate controls plus or minus 5% linearity
- Equipped with the following components:
Series 1840-T Burst Test Fixture (Restrained Endcaps)
- Triple Design to accommodate three sets of end caps, eliminating the need to change endcaps when testing different specimen sizes providing fast reliable burst testing of pipe samples up to 12 in.
Burst Enclosure
- Heavy duty, stainless steel enclosure, with top opening cover of polycarbonate viewport and painted stand.
- Dimensions: 18 in. high x 18 in. deep x 48 in. wide.
