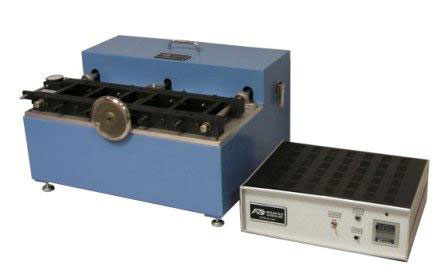

The ATS Series 510 Horizontal Sealant Tester has been designed to test the durability of joint sealants at a constant speed of 1/8 in. per hour, and in load capacities up to 1,000 lbf (4.44 kN). It is capable of determining Aymar durability and performing other constant-speed tests per ASTM C719, C736, C910, and Federal SS-S200 and TT-S230.
Features
- User friendly controls housed in a separate cabinet
- Predetermining cycle counter with reset
- Dial indicator provides precise setting of amplitude, extension, and compression
- Design features include precision stainless steel guide rods, electronic clutch, and an optional hand wheel for manual positioning and setup of the test fixture
Product Specifications
| Constant-Speed Testing | 0.125 in./hour (3.2 mm/hour) | |
| Specimen Capacity | 4 (standard), 8 or 12 (optional) | |
| Load Capacity | 1,000 lbf (4.44 kN) divided by number of samples | |
| Number of Cycles | 0 – 9,999 | |
| Frame Type | Bench top, horizontal | |
| Drive Type | Single-screw, single-motor | |
| Fixture Alignment | Parallel guide rods | |
| Power Requirements | 115 VAC, 1 ph, 60 Hz or 230 VAC, 1 ph, 50/60 Hz | |
