Our electromechanical Universal Testing Machines are capable of performing virtually any test on almost any material when coupled with our unmatched line of standard and custom testing accessories. As with all ATS equipment, any of our standard frame designs can be custom-modified by our experienced Engineering department to suit any application or space restriction.
Features
- Used for complex or repetitive testing
- Capacities up to 67,440 lbs
- Compact for small spaces
- Accommodates many sizes of chambers, fixtures and samples
- Twin-screw drive system with hard-chrome plated guide rods
- Precise motion control system
- Extra large testing area
- Upper moving crosshead
Accessories
- Furnaces
- Heating and cooling chambers
- Fixtures
- Grips

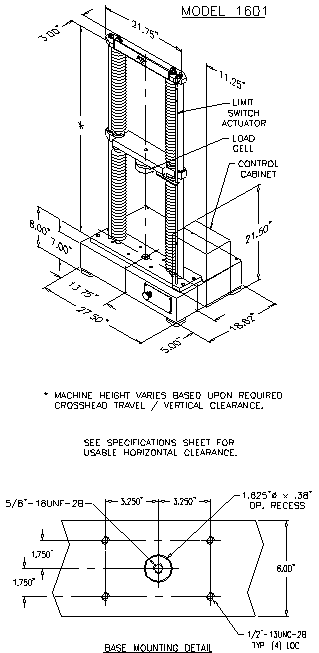

Series 1601
- Capacities: 1,000 lbs
Click here to see the drawing!

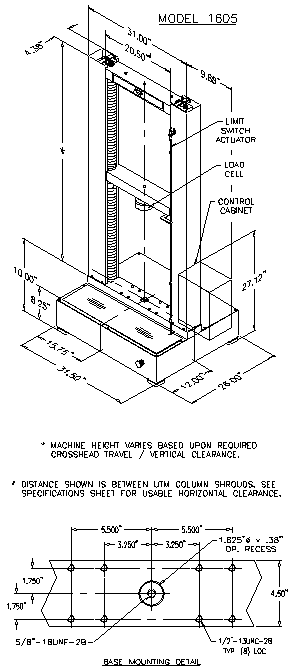

Series 1605
- Capacities: 5,000 lbs
Click here to see the drawing!

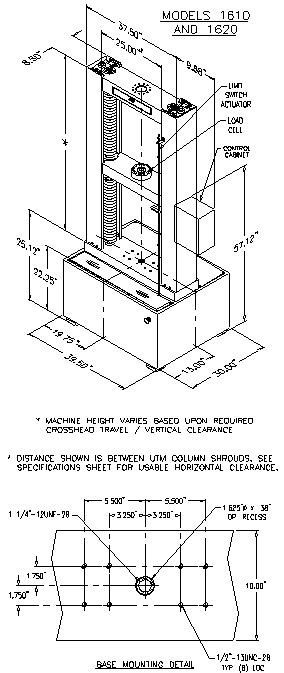

Series 1610
- Capacities: 10,000 lbs
Series 1620
- Capacities: 20,000 lbs
Click here to see the drawing!

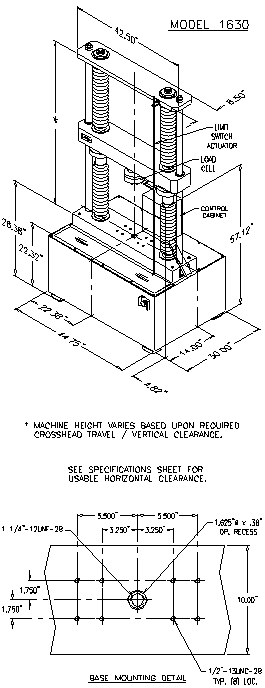

Series 1630
- Capacities: 30,000 lbs
Click here to see the drawing!
Series 1660
- Capacities: 60,000 lbs
